- 6B2C Battery & Charger Configuration Six B141050 Smart SuperCharge batteries paired with two CM13600S chargers and two battery cooling towers support extended field workdays with continuous battery rotation.
- 80 L RevoSpray 5 Spraying System XAG RevoSpray 5 delivers up to 32 L/min across a 5–10 m spray width with 60–500 μm adjustable droplet range for consistent broad-acre and orchard coverage.
- RTK Precision at ±10 cm Bundled XRTK7 RTK rover station enables ±10 cm hover precision for repeatable swath alignment, field boundary control, and consistent treatment patterns.
- 4D Radar Obstacle Avoidance Onboard 4D imaging radar detects obstacles from 1.5 to 100 m, supporting safe autonomous operation across orchards, irregular field geometries, and rolling terrain.
- IPX6K Field Durability IPX6K protection rating ensures the P150 Max withstands wash-down and harsh agricultural environments across peak seasonal operations.
- SRC5 Smart Remote Controller Included Full kit includes the SRC5 smart remote controller for mission planning, in-flight monitoring, and real-time operational management.
Descrizione

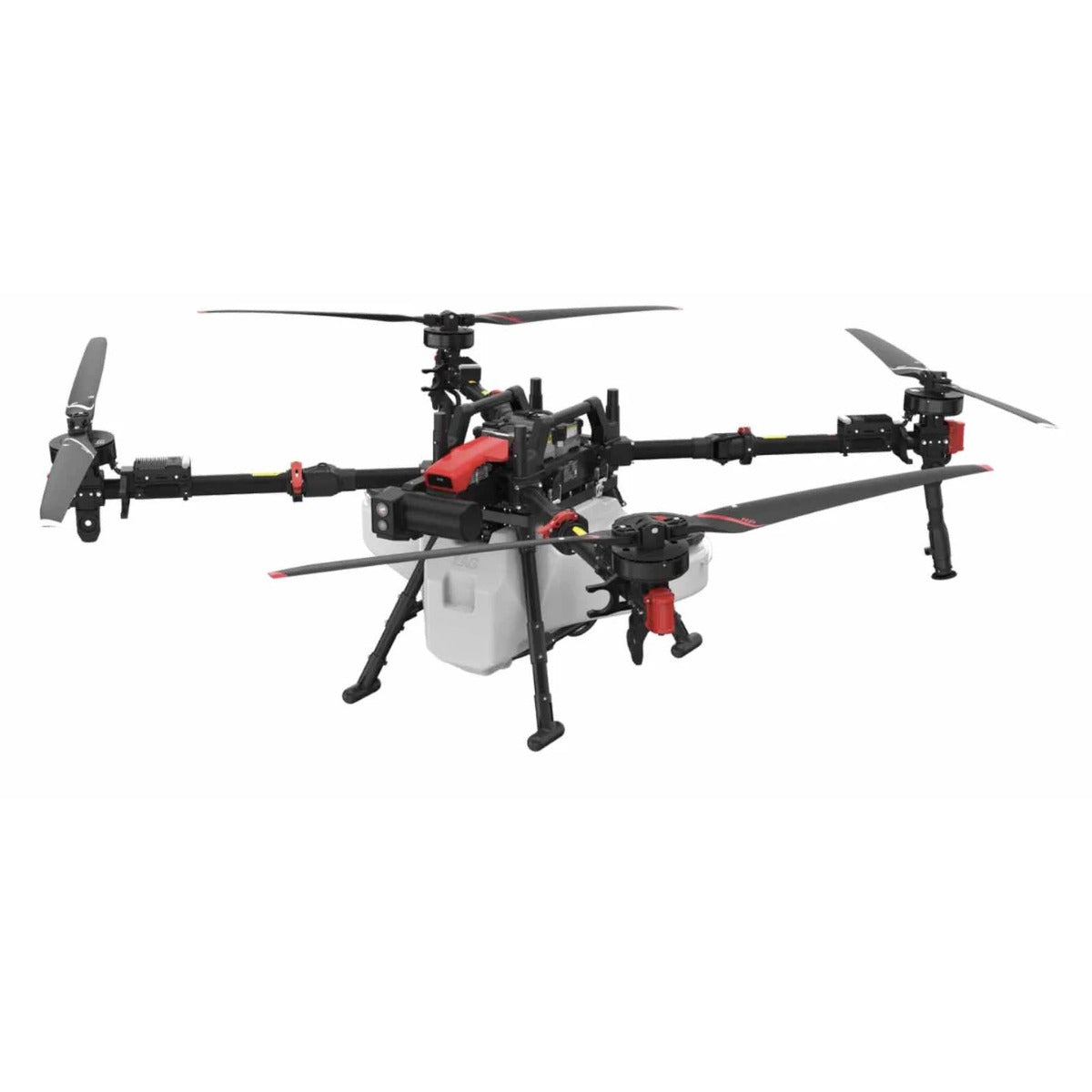

The XAG P150 Standard 7KW 6B2C Kit is a professional-grade agricultural drone package designed to deliver a complete field-ready spraying operation in a single bill of materials. The kit pairs the XAG P150 Max with RevoSpray 5 — XAG's 80-liter smart liquid tank platform capable of up to 32 L/min flow rate across a 5–10 m effective spray width — with six B141050 Smart SuperCharge batteries, two CM13600S smart chargers, two battery cooling towers, an SRC5 smart remote controller, and an XRTK7 RTK rover station. The 6B2C designation reflects the six-battery, two-charger power configuration designed to support extended field workdays with smooth battery rotation. The 7KW tier indicates a lower-throughput charging class positioned between the entry-level Starter bundle and higher 14KW configurations.
The P150 Max platform supports RTK hover precision of ±10 cm, 4D imaging radar obstacle avoidance detecting obstacles from 1.5 to 100 m, and an IPX6K protection rating for durability in demanding field conditions. The aircraft's official P150 specifications cite a rated takeoff weight of 114 kg and maximum takeoff weight of 125 kg for spraying configuration, and a maximum flight speed of 18 m/s. The Standard 7KW 6B2C Kit targets professional operators who need a scalable, field-complete spray package with more battery depth than an entry kit, without the infrastructure complexity of multi-drone swarm configurations.
Caratteristiche
Specifiche
| Brand | XAG |
|---|---|
| Model | P150 Standard 7KW 6B2C Kit |
| Aircraft | XAG P150 Max with RevoSpray 5 |
| Tank Capacity | 80 L |
| Max Payload (spray) | 80 kg |
| Max Flow Rate | 32 L/min (dual pumps) |
| Effective Spray Width | 5–10 m |
| Droplet Size Range | 60–500 μm |
| Max Flight Speed | 18 m/s (official P150 spec) |
| Rated / Max Takeoff Weight | 114 kg / 125 kg (spraying) |
| Protection Rating | IPX6K |
| RTK Hover Precision | ±10 cm (horizontal and vertical) |
| Batteries Included | 6× B141050 Smart SuperCharge (20,000 mAh) |
| Chargers Included | 2× CM13600S |
Settori industriali
Domande frequenti
It is a complete agricultural drone spraying kit designed for professional crop protection operations across broad-acre fields and orchards. The package includes the P150 Max with RevoSpray 5 (80 L tank, up to 32 L/min), six batteries, two chargers, RTK positioning, and a smart controller for sustained autonomous field missions.
The 6B2C notation refers to six Smart SuperCharge batteries and two CM13600S chargers included in the kit, providing a deeper battery rotation than entry-level bundles. The 7KW label reflects the kit's charging tier — a lower-throughput class compared with 14KW and 28KW configurations, suitable for operators building toward higher utilization.
The P150 Standard 7KW 6B2C Kit is suited for commercial agriculture including broad-acre crop protection spraying, orchard and specialty crop treatment, and mixed farming operations where a single-aircraft, professional-grade spray package with extended daily battery capacity is needed.
Yes, Robotix Market ships the XAG P150 Standard 7KW 6B2C Kit to customers worldwide. The product is covered by the manufacturer's warranty; contact us for warranty terms applicable in your region.
Contact Robotix Market through our website or submit a quote request — our team will provide pricing, availability, configuration advice, and international shipping details for the XAG P150 Standard 7KW 6B2C Kit.
XAG P150 Standard Agricultural Drone 7KW 6B2C Kit
- Prezzo di listino
- €31.669,95
- Prezzo scontato
