- Modular Parallel Expansion Up to 5 packs connect automatically in parallel via plug-and-play, scaling total battery output from 1 kW to 5 kW to meet varying robot energy requirements.
- LiFePO4 Chemistry Lithium iron phosphate cells deliver 2,000 charge cycles to 80% capacity, offering inherent thermal stability and a long service life for continuous industrial use.
- Wide Temperature Operation Discharge operation rated from -20 °C to 60 °C enables reliable performance in cold storage facilities, outdoor logistics, and high-temperature manufacturing environments.
- Global Safety Certifications Holds CE, UL, FCC, and EN 13849-2015 certifications, supporting compliant deployment of robot functions across major international markets.
- CANOPEN Protocol Native CANOPEN communication enables direct integration with SEER Robotics AMR controllers and other industry-standard robot control architectures.
Description
The SEER Robotics SBP-48V23AHLS is a modular lithium iron phosphate battery pack engineered to power autonomous mobile robots and industrial automation systems. Built on a plug-and-play architecture, up to five battery packs can be connected in parallel automatically, scaling output from 1 kW to 5 kW to match the energy demands of diverse robot platforms. The 51.2 V nominal / 23 Ah configuration provides a solid energy foundation, while lithium iron phosphate cell chemistry ensures long cycle life — rated at 2,000 cycles to 80% capacity — and safe operation across a discharge temperature range of -20 °C to 60 °C.
Holding CE, UL, FCC, and EN 13849 certifications, the SBP-48V23AHLS meets rigorous global safety standards, simplifying compliance for robot deployments in Europe, North America, and beyond. CANOPEN protocol compatibility ensures straightforward integration with SEER Robotics AMR platforms and compatible third-party controllers. Each unit weighs 13 kg and measures 380 × 220 × 100 mm, offering a compact and stackable form factor well-suited for mobile robot chassis where space and weight are tightly constrained.
Fonctionnalités
Spécifications
| Brand | SEER Robotics |
|---|---|
| Model | SBP-48V23AHLS |
| Product Name | Modular Battery |
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 23 Ah |
| Limited Charge Voltage | 58.4 V |
| Maximum Charge Current | 23 A |
| Maximum Discharge Current | 30 A (< 5 s) |
| Cycle Life | 2,000 cycles ≥ 80% |
| Cell Material | Lithium iron phosphate |
| Discharge Temperature | -20 °C to 60 °C |
| Charge Temperature | 0 °C to 45 °C |
| Dimensions (L × W × H) | 380 × 220 × 100 mm |
| Weight | 13 kg |
Secteurs
Questions fréquentes
The SBP-48V23AHLS is a modular 51.2 V lithium iron phosphate battery pack designed to power autonomous mobile robots and industrial automation systems. It can be combined in parallel with up to four additional units to scale energy output as required.
Up to 5 SBP-48V23AHLS packs can be connected automatically in parallel using the plug-and-play interface, scaling total energy from 1 kW to 5 kW without additional wiring or configuration.
The battery holds CE, UL, FCC, and EN 13849 certifications, making it suitable for deployment in Europe, North America, and other major markets including factories, warehouses, logistics centers, and autonomous vehicle platforms.
Robotix Market ships the SBP-48V23AHLS worldwide. The product is covered by the manufacturer's warranty as provided by SEER Robotics; specific terms are confirmed at the time of purchase.
Contact the Robotix Market team through our website to request a quote. Pricing is configured on a project basis to account for quantity, integration requirements, and regional logistics.

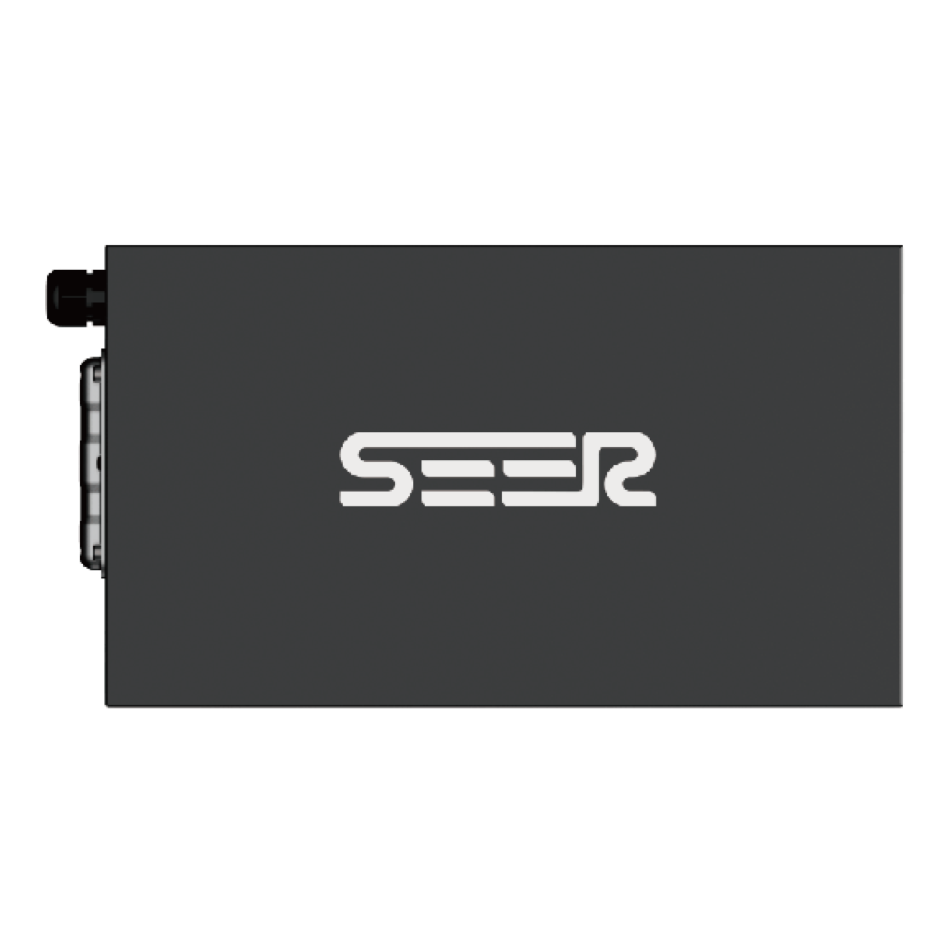

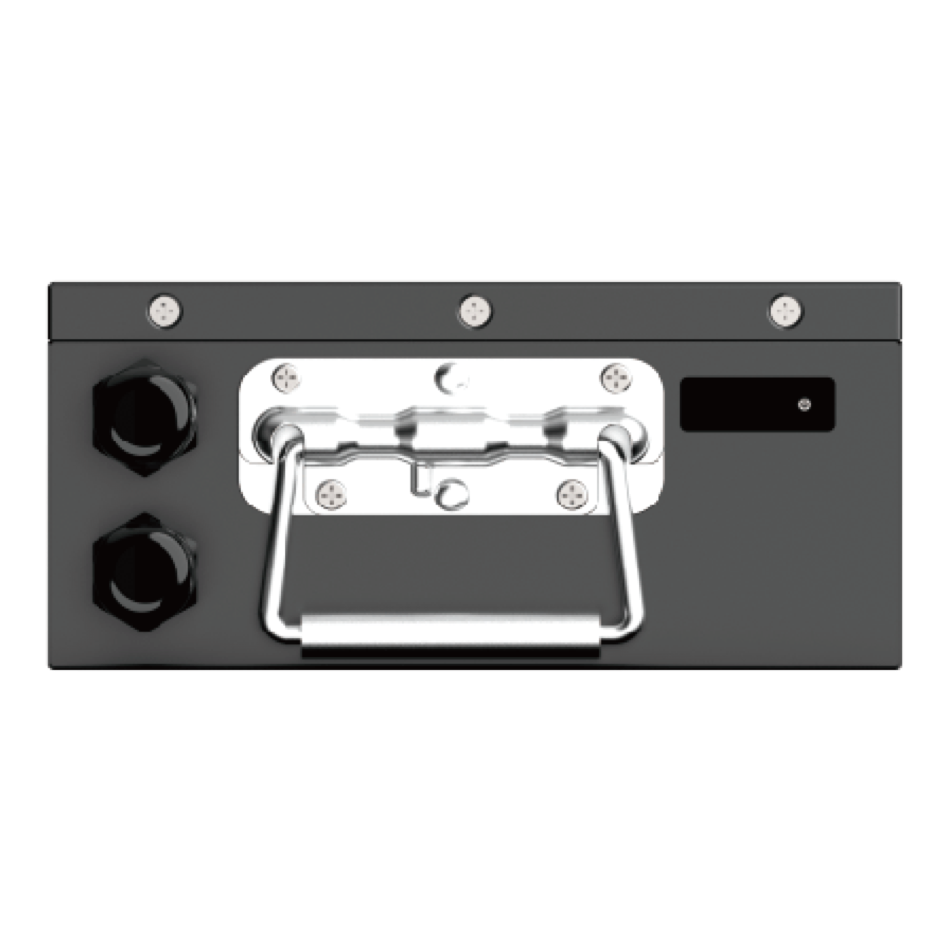

SEER Robotics SBP-48V23AHLS Modular Battery Pack
