- Japanese 110 V power compatibility Built for 110 V single-phase input with JP 10A plug specification, enabling direct deployment in Japanese facilities without power conversion hardware.
- Intelligent battery-feedback charging Automatically adjusts the power supply strategy based on real-time battery state feedback to protect cell health and extend service life.
- Automatic robot docking Enables AMB-800K robots to dock and recharge autonomously without human intervention, maintaining continuous fleet uptime.
- Manual charging backup LP24-4P connector with adapter provides a manual charging fallback for maintenance scenarios or when autonomous docking is not available.
- AMB-800K exclusive compatibility Engineered specifically for the SEER Robotics AMB-800K autonomous mobile robot at 48 V / 15 A to ensure matched electrical performance.
Beschreibung
The SEER Robotics SCS-N4815FV1-JP10 is an automatic charging station purpose-built for the AMB-800K autonomous mobile robot, designed for deployment in facilities operating on Japanese 110 V power infrastructure. Delivering 48 V DC at up to 15 A for a maximum output of 900 W, the station provides intelligent automatic charging that adjusts its power supply strategy in real time based on battery feedback—protecting battery health and extending service life across high-cycle industrial deployments. A JP 10A plug specification and 110 V single-phase input make it a direct-fit solution for Japanese facilities without the need for additional power conversion hardware.
The SCS-N4815FV1-JP10 retains the core design principles of the SEER Robotics charging line: automatic robot docking for hands-free recharging, a manual charging fallback via an LP24-4P connector (equipped with an adapter), and a new industrial form factor measuring 520 × 350 × 298.5 mm. At 20 kg, the station is straightforward to install and position alongside AMB-800K travel lanes in warehouse and logistics environments. Intelligent charging ensures that each charge cycle is optimized for the specific battery state at docking, making the SCS-N4815FV1-JP10 a reliable infrastructure component for Japanese operations running the AMB-800K platform.
Funktionen
Technische Daten
| Brand | SEER Robotics |
|---|---|
| Model | SCS-N4815FV1-JP10 |
| Product Name | Robotic Automatic Charging Station |
| Dimensions (L × W × H) | 520 × 350 × 298.5 mm |
| AC Input Voltage | 110 V |
| Input Frequency | 50 / 60 Hz |
| DC Output Voltage | 48 V |
| Maximum Output Voltage | 54.5 ± 0.2 V |
| DC Output Current | 15 A |
| Maximum Output Power | 900 W |
| Weight | 20 kg |
| Manual Charging Connector | LP24-4P (with adapter) |
| Plug Specification | JP 10A |
| Compatible Robot | SEER Robotics AMB-800K (15 A) |
Branchen
Häufig gestellte Fragen
The SCS-N4815FV1-JP10 is an automatic charging station exclusively for the SEER Robotics AMB-800K autonomous mobile robot, designed for Japanese facilities operating on 110 V power. It enables robots to dock and recharge autonomously in warehouse, logistics, and industrial environments.
It delivers 48 V DC at 15 A (900 W maximum) with intelligent battery-feedback charging that adjusts power strategy in real time. It supports both automatic robot docking and manual charging via an LP24-4P connector with adapter, and uses a JP 10A plug for direct connection to Japanese power outlets.
It is suited to manufacturing plants, warehouses, logistics centers, and distribution facilities in Japan running the SEER Robotics AMB-800K autonomous mobile robot that require automatic charging infrastructure on 110 V power.
Yes, Robotix Market ships the SEER Robotics SCS-N4815FV1-JP10 worldwide. The product is covered by the manufacturer's warranty as provided by SEER Robotics.
Contact the Robotix Market team via the website's quote or inquiry form. We will confirm compatibility with your AMB-800K deployment, provide pricing, lead times, and shipping details.

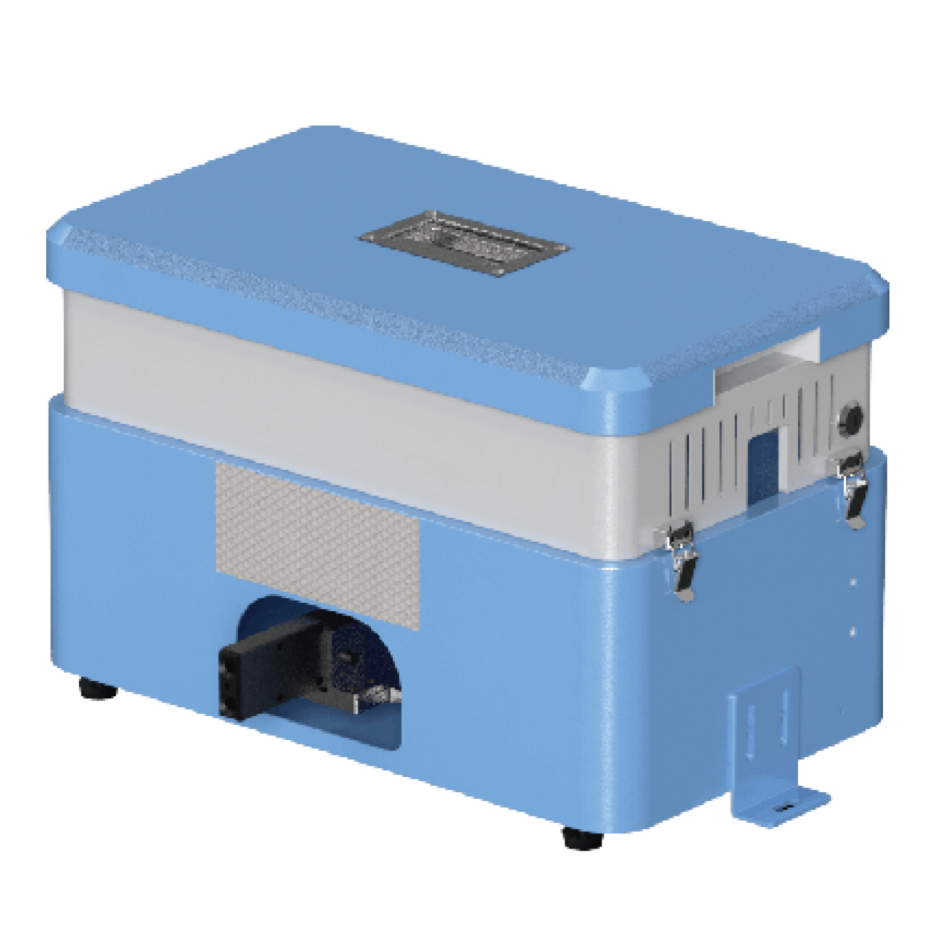

SEER Robotics SCS-N4815FV1-JP10 Robotic Automatic Charging Station
