- 21 degrees of freedom 21 total DOF—significantly more than the Revo 2's 11—distributed to mirror human hand kinematics and support in-hand manipulation beyond simple open-close grasping.
- Direct-drive backdrivable joints Fully direct-drive, backdrivable joint architecture provides smooth motion, low transmission backlash, and the force-control sensitivity required for stable in-hand object manipulation.
- Full-palm tactile sensing at 0.01 N resolution Full-palm tactile sensing layer with 0.01 N force resolution enables contact-aware manipulation and precise grasp force regulation across the entire palm surface.
- Fingertip visuotactile sensing at 130 µm resolution Fingertip visuotactile sensors detect approximately 130 µm surface deformation, supporting fine-grained contact detection and in-hand object state estimation.
- Demonstrated complex manipulation tasks Public demonstrations include Rubik's Cube solving, paper cutting, scissor use, bead handling, and string play—tasks requiring kinematic complexity, sensing, and in-hand dexterity together.
- Embodied AI and humanoid robotics positioning Designed for humanoid robots, mobile manipulators, teleoperation systems, and embodied learning platforms where human-level in-hand dexterity is the development target.
Beschreibung
The BrainCo Revo 3-21 Basic is a next-generation dexterous robotic hand built to push beyond the kinematic limits of conventional multi-finger end-effectors. Its headline specification is 21 total degrees of freedom—nearly double the 11 DOF of the Revo 2 series—distributed to more closely mirror human hand capability and enable in-hand manipulation rather than just static grasping. A fully direct-drive, backdrivable joint architecture delivers the smooth motion, low backlash, and force-control resolution that complex manipulation tasks demand, while a full-palm tactile sensing layer at 0.01 N resolution and fingertip visuotactile sensing capable of detecting approximately 130 µm deformation provide the sensory fidelity needed for stable in-hand object handling.
Public demonstrations of the Revo 3 have included paper cutting, Rubik's Cube solving, string play, bead handling, and scissor use—tasks that require not only kinematic range but also the sensing integration and control resolution to move objects within the hand without dropping them. BrainCo's engineering base for the Revo 3 builds on the commercially established Revo 2 program, which produced a hand delivering 50 N grip force and 20 kg maximum load at 383 g, providing a credible foundation for the Revo 3's more ambitious dexterity and sensing targets. The Revo 3-21 Basic is positioned for embodied AI systems, humanoid robotics research, and advanced manipulation development teams seeking human-level in-hand dexterity at a commercial product scale.
Funktionen
Technische Daten
| Brand | BrainCo |
|---|---|
| Model | Revo 3-21 Basic |
| Total Degrees of Freedom | 21 |
| Joint Architecture | Fully direct-drive, backdrivable |
| Palm Tactile Sensing Resolution | 0.01 N |
| Fingertip Visuotactile Sensing | ~130 µm deformation detection |
| Lineage | Successor to BrainCo Revo 2 (11 DOF, 383 g, 50 N grip) |
Branchen
Häufig gestellte Fragen
The Revo 3-21 Basic is a 21-DOF dexterous robotic hand designed for humanoid robots, mobile manipulators, teleoperation systems, and embodied AI research platforms where in-hand manipulation capability—moving objects within the hand, not just grasping—is the core requirement.
The Revo 3 combines 21 degrees of freedom (versus 11 in the Revo 2) with a fully direct-drive backdrivable joint architecture, full-palm tactile sensing at 0.01 N resolution, and fingertip visuotactile sensing at approximately 130 µm deformation—enabling in-hand manipulation tasks that are beyond simpler robotic hand designs.
It targets robotics research and embodied AI development, advanced education programs building humanoid manipulation capability, and commercial development teams working on next-generation humanoid robot platforms where human-level dexterity is a product requirement.
Yes, Robotix Market ships worldwide. The Revo 3-21 Basic is covered by the manufacturer's warranty; no on-site installation or service is included.
You can purchase the Revo 3-21 Basic directly on the Robotix Market website, or contact us via the quote request form for research institution pricing, bilateral pair configurations, or integration guidance.

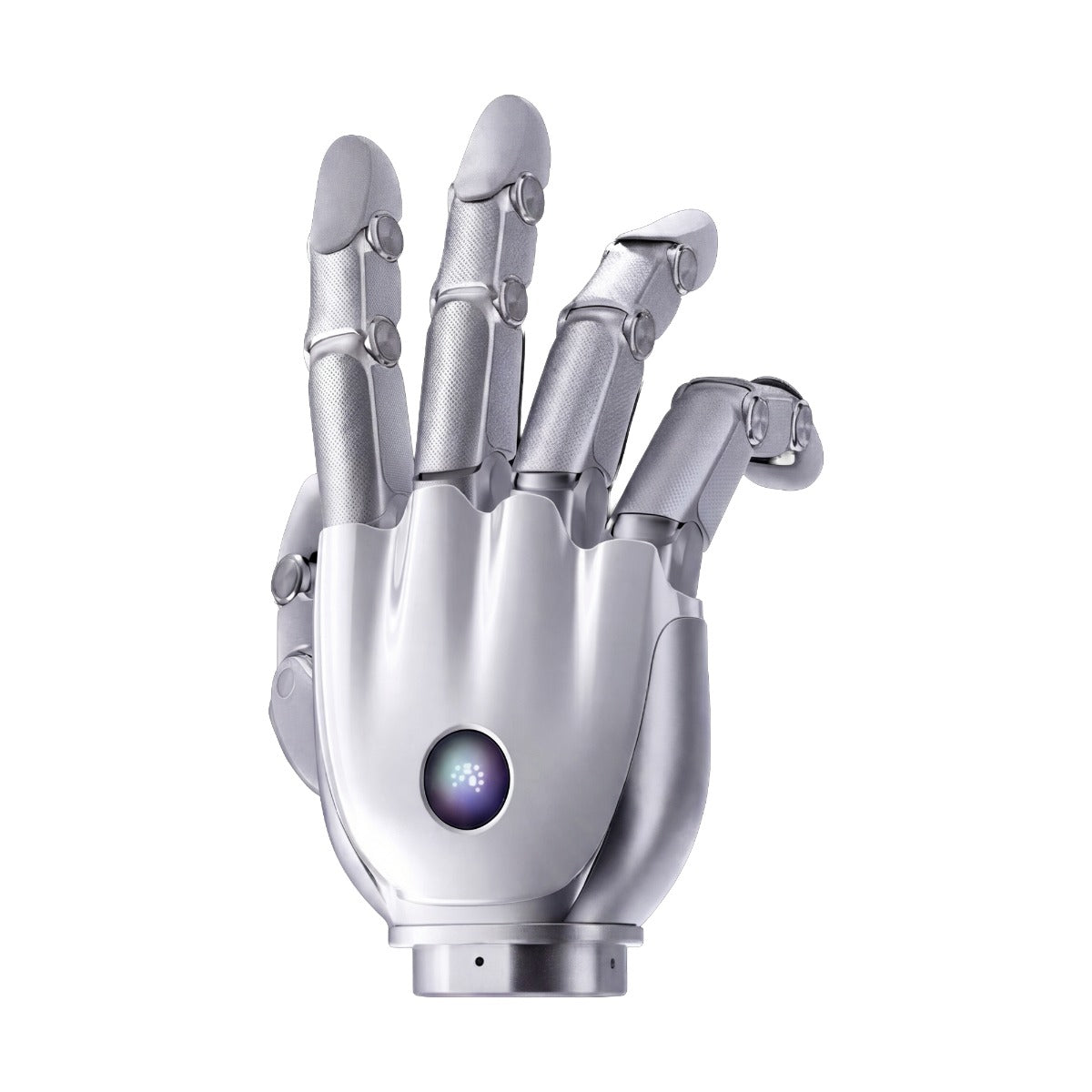

BrainCo Revo 3-21 Basic Dexterous Robot Hand
